High-pressure cleaning machine core: analysis of motor pump head materials.

1. What exactly does the movement material refer to? The motor and pump head are the main protagonists!

The core component of a high-pressure cleaning machine is akin to a car’s engine, but this engine is actually a “dual-core drive” – an electric motor and a pump head work together to form the core system. The motor provides power, while the pump head is responsible for pressurizing and spraying water. The materials used for both components directly impact the machine’s lifespan and performance. For example, an aluminum alloy motor casing is more heat-resistant than a plastic one, and a ceramic valve disc pump head is more wear-resistant than a stainless steel one. These details determine whether the machine can withstand the high-intensity work of 8 hours per day.

2. Motor Material: The Durable Secret Hidden Within the Enclosure

The core components of an electric motor are the stator and the rotor. However, it is the material of the casing that truly affects its durability. There are three common types of materials:

Engineering plastics: lightweight and affordable, but prone to deformation under prolonged exposure to high temperatures. Suitable for low-power household models.

Aluminum alloy: fast heat dissipation, lightweight; standard feature for commercial models; can operate continuously for 4 hours without failure.

Stainless Steel: Exclusive to high-end models, highly resistant to corrosion, suitable for harsh environments such as coastal areas or chemical plants. Special note: The insulating material of the motor’s internal coils is also crucial. High-quality enameled wire can extend the motor’s lifespan by more than 30%!

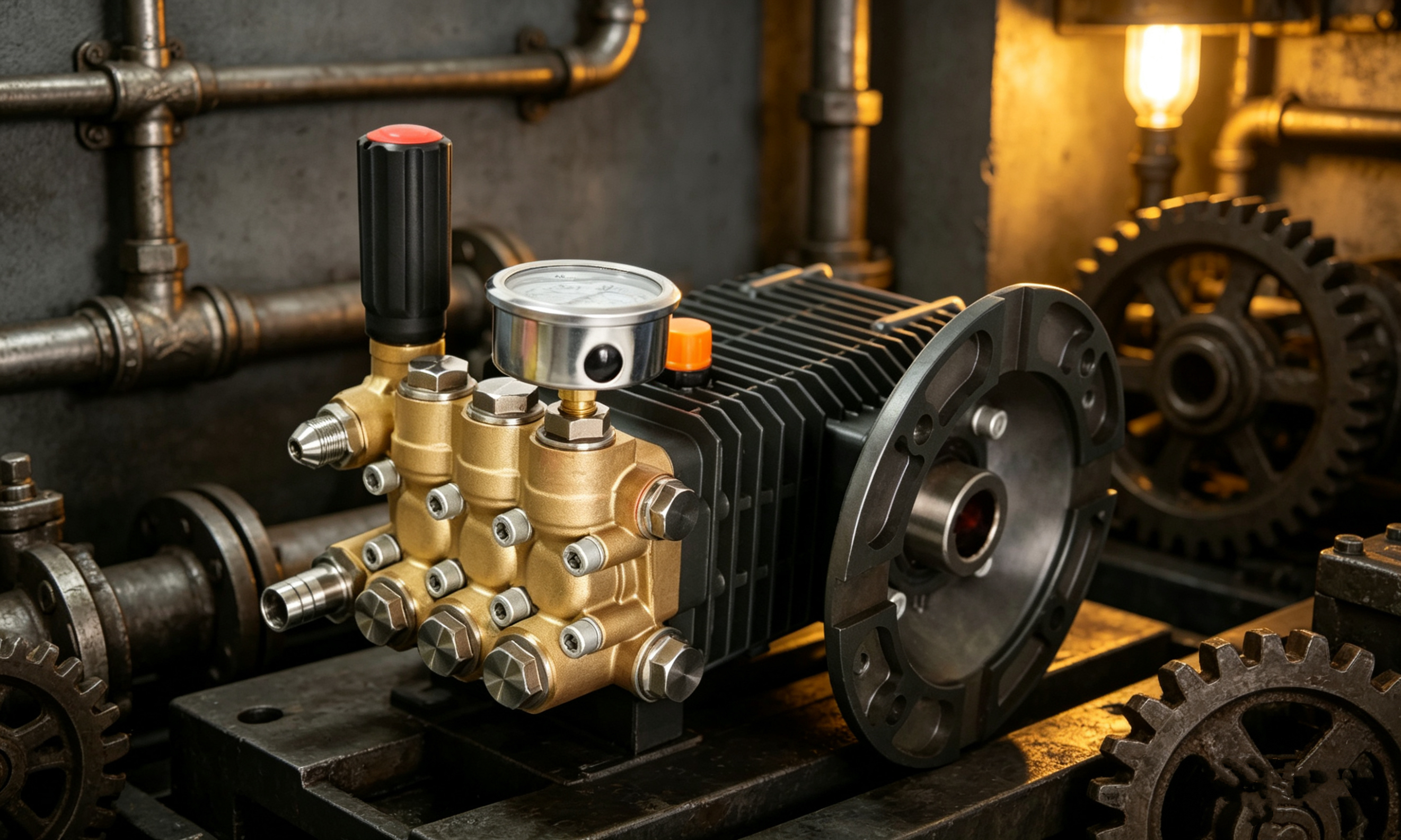

3. Material of the pump head: An ideal test for high-pressure water flows. The pump head, which is the core component that withstands high pressure, is directly determined by the material choice, which in turn affects the maximum pressure value.

Copper pump head: Traditional material; can withstand pressures up to 100 bar, but it is heavy and costly.

Aluminum alloy pump head: a lightweight option with a pressure rating of around 80 bar, suitable for home use.

Ceramic pump heads: a novel material that can withstand pressures exceeding 150 bar and has three times the wear resistance of metal. Interesting phenomenon: some pump heads feature a “composite armor” design – ceramic valve plates combined with stainless steel cylinder bodies. This combination not only ensures resistance to pressure but also enhances wear resistance, allowing the pump head’s lifespan to exceed 5,000 hours!
