The reliable assistant for a cleaning machine – the high-pressure water gun.
The high-pressure cleaning gun is the handheld control component of the high-pressure cleaner, connected to a high-pressure hose, and realizes high-pressure water injection through a trigger-controlled valve. It is divided into three categories: household car washing short guns, commercial long guns, and industrial ultra-high-pressure guns. The core material is copper valve + ceramic valve core and stainless steel gun rod, with a pressure rating of 100-500bar (1500-7200PSI).
I. Core Structure and Working Principle
1. Basic composition

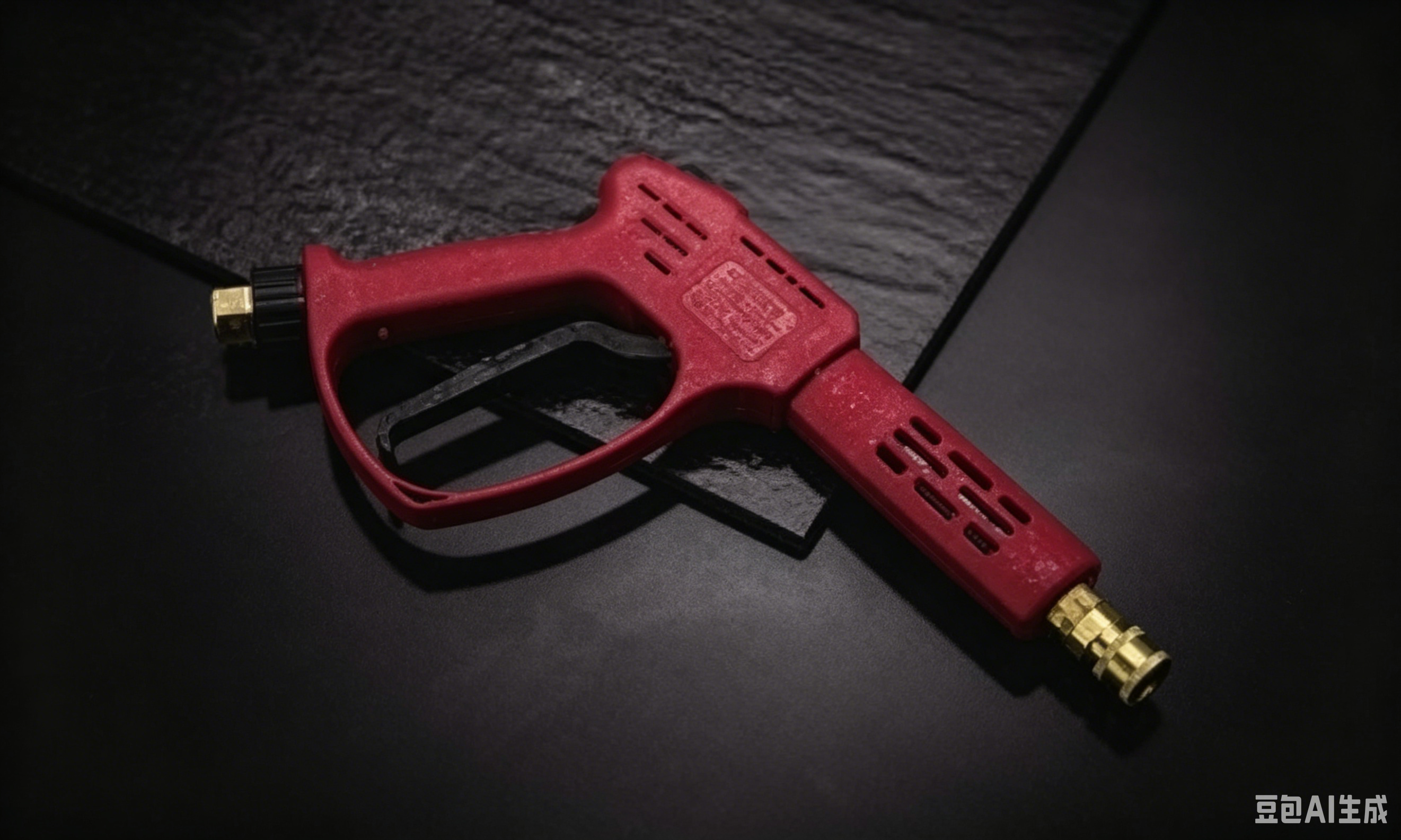

Gun handle valve body: built-in ceramic valve core, overflow valve, trigger safety lock to prevent accidental contact; high-quality model with 360 ° rotating joint, hose does not tangle.
Gun rod (long rod / short rod): stainless steel material, extended rod for high-altitude and ground cleaning at long distances.
Quick plug interface: standard 1 / 4 inch quick plug nozzle interface; water inlet thread divided into M22 (14 / 15mm), 3 / 8 quick plug two mainstream specifications
Matching nozzle, foam PA pot, rotating nozzle, sandblasting head
Two kinds of valve control principle
Overflow type (market mainstream)
Pull the trigger → The valve closes and water pressure builds up to produce water; release the trigger → The overflow valve releases pressure, and the pump circulates at low pressure without damaging it, making it suitable for both household and commercial use.
Cut-off type (industrial ultra-high pressure)
The trigger pipe continues to maintain pressure, relying on the pump's built-in relief valve for pressure relief, suitable for rust removal and paint removal in heavy-duty conditions at 500 bar, with higher sealing requirements.
II. Major Categories and Application Scenarios

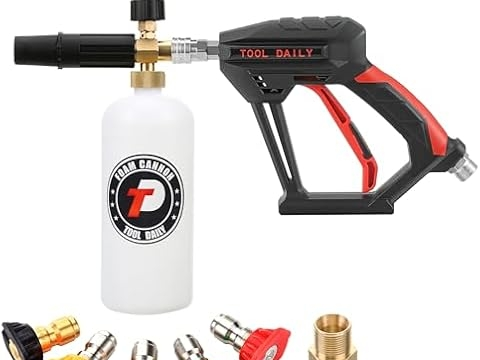

Household short gun (100-200 bar, 3000 PSI within)
Appearance: Compact, all-in-one handle design; lightweight.
Purpose: household car washing, patio flooring, doors and windows, air conditioning units.
Standard Features: Five-color fan-shaped nozzles + foam PA sprayer.
Material: engineered plastic casing, brass internal valve.
2. Commercial extended-length pumps (200–350 bar, 4500 PSI).
Bar length: 30–120 cm. Hand-held anti-slip secondary grip to counteract the high-pressure recoil.
Scenarios: car wash shops, exterior walls of properties, floor washing, cleaning of livestock farms.
Advantages: Long poles eliminate the need to stoop, and high wall surfaces do not require ladders.
3. Industrial ultra-high-pressure guns (350–500 bar, 7200 PSI).
Thickened copper valve body, fully stainless steel gun body, heavy-duty shoulder rest for absorbing significant recoil.
Complementary sandblasting rotary nozzle, uses: ship rust removal, factory paint removal, concrete surface roughening, pipe blockage clearance.
The high-temperature resistant model is compatible with hot water cleaning machines (maximum temperature: 160°C).
