How to choose the Plunger for the high pressure washer
How to choose the plunger material?Today I’m gonna talk about several common used plungers on the market: Steel Plunger,Ceramic Spray Plunger and ceramic Plunger.

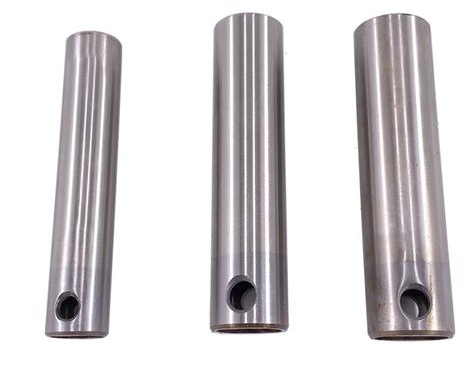

Generally speaking , the steel plunger is made of 3CR13,suitable washers pressure under 120kg.So for household and small business, low pressure cleaning machine.That’s more than enough. The advantage is low cost.The disadvantage is that it’s not resistant to corrosion and the lifespan is not very high.If the life for the pump is not long, so it’s quite appropriate.But the premise is toremind that the water quality should be clean。

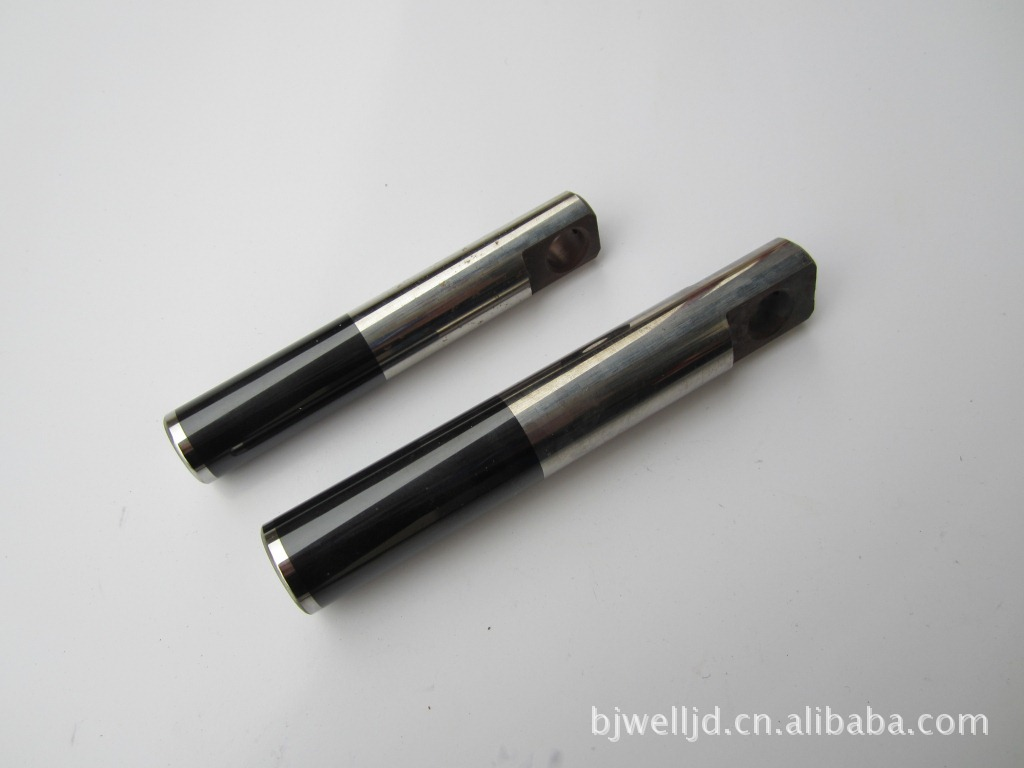

The next we’re talking about is the ceramic spray Plunger. Ceramic Spray Plunger are generally divided into semi-ceramic spray plungers and and fully blown ceramic plungers.Generally the spray material is high aluminum porcelain.The quality of the surface ceramic depends on the 1.quality of the ceramic powder 2. the spraying process.3.The quality of pre-treatment of metal plunger body before spraying. First, put the metal plunger body pre-processed as required and surface cleaning treatment.Select the high quality ceramic powder.Then proceed according to the corresponding ceramic spraying process requirements.If the Spray is not good, Then the ceramic will fall off. The most obvious result is the leakage of the pump body.So the Ceramic spray plunger’s lifespan is shorter compared to the steel plunger and resistant to light corrosion.Generally, It is suitable for washers under 300Bar pressure.The only advantage is that it is not well made.If the ceramic spray process is used, there will be de-porcelain phenomenon.
Generally speaking , the steel plunger is made of 3CR13,suitable washers pressure under 120kg.So for household and small business, low pressure cleaning machine.That’s more than enough. The advantage is low cost.The disadvantage is that it’s not resistant to corrosion and the lifespan is not very high.If the life for the pump is not long, so it’s quite appropriate.But the premise is toremind that the water quality should be clean。
The next we’re talking about is the ceramic spray Plunger. Ceramic Spray Plunger are generally divided into semi-ceramic spray plungers and and fully blown ceramic plungers.Generally the spray material is high aluminum porcelain.The quality of the surface ceramic depends on the 1.quality of the ceramic powder 2. the spraying process.3.The quality of pre-treatment of metal plunger body before spraying. First, put the metal plunger body pre-processed as required and surface cleaning treatment.Select the high quality ceramic powder.Then proceed according to the corresponding ceramic spraying process requirements.If the Spray is not good, Then the ceramic will fall off. The most obvious result is the leakage of the pump body.So the Ceramic spray plunger’s lifespan is shorter compared to the steel plunger and resistant to light corrosion.Generally, It is suitable for washers under 300Bar pressure.The only advantage is that it is not well made.If the ceramic spray process is used, there will be de-porcelain phenomenon.

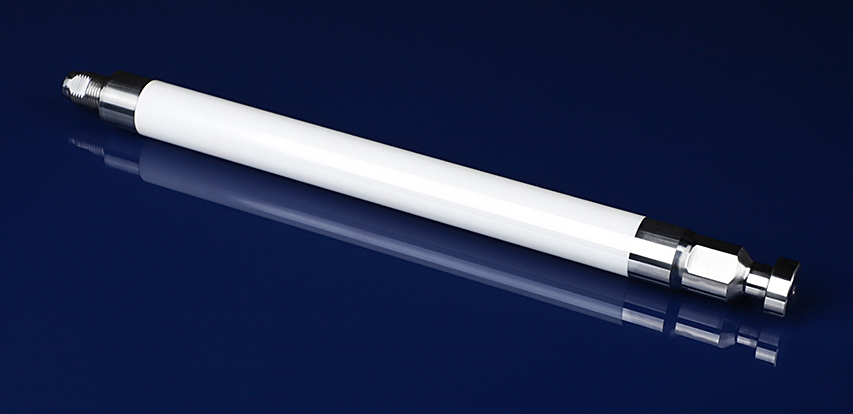

Finally, let’s talk about the ceramic Plungers,Now the demand of ceramic plungers in the market is getting higher and higher.More and more manufactures choose the ceramic plungers.That’s a good thing.It’s can be applied to washers under 800 bars generally.So that’s it for a one or two hundred kilogram pump, the cost is also much higher than steel plungers and ceramic spray plungers.Not only the ceramic plunger’s lifespan is longer than the steel plunger and ceramic spray plunger, but also it can resist acid and alkali corrosion. The ceramic Plunger’s material is generally 99,high aluminum ceramic or zirconia.Zirconia is stronger than high-aluminum ceramic,more wear-resistant and more dry-abrasive.We should pay attention to the ceramic plungers as follows:The cooperation between ceramic and metal parts much be fixed.And the process requirements of the ceramic production are very high.No cracks. The manufacture must testing it very carefully to ensure the consistent qualification of the product.It’s possible that the ceramic plunger can be loose and hard to maintenance.Cause the all-ceramic plunger is connected to the base metal using threads. The self-locking property between ceramics and metal threads is relatively weak. As a result, maintenance is quite inconvenient. Maintenance is inconvenient because the entire ceramic plunger is installed as a whole within the casing. If the plunger is damaged, it needs to be disassembled from the inside of the casing in order to replace it. For this reason, manufacturers usually opt for semi-ceramic plungers, which are more cost-effective.
