A Comprehensive Analysis of Ultra-High Pressure Cleaning Machines
Overview of Hyper High Pressure Cleaners
As an efficient cleaning equipment, ultra high pressure cleaning machines play an important role in both industrial and civil fields. It drives the pump through a power unit, pressurizes the water to tens to hundreds of megapascals, and forms high-speed jets through a high-pressure nozzle, using the impact, shear and airification effect of the water jet to complete the cleaning operation. At its core, mechanical energy is converted into pressure energy for water, and the energy is precisely released through nozzles to achieve efficient cleaning. The working pressure of ultra-high pressure cleaners can usually reach 500-3000 bar or even higher, which makes it easy to deal with a variety of stubborn stains and complex cleaning scenarios.
How an ultra high pressure cleaning machine works
Water Input and Filtration
High pressure washing machine inhales atmospheric water from ordinary water sources such as tap water, and the pressure is about 0.1-0.5MPa. The water first passes through the filter, a crucial step that removes impurities from the water and prevents these impurities from clogging the high pressure pump and nozzle, thus ensuring the proper operation of the entire cleaning system. For example, in some areas with poor water quality, without a good filtration system, impurities may wear out the internal parts of the high-pressure pump and shorten the service life of the equipment.
The pressurization process of water
The core component of the high pressure piston pump (or piston pump, three-cylinder pump, etc.) compresses constant pressure water under the drive of an electric motor, gasoline engine, or diesel engine, making its pressure greatly increase. For ultra-high pressure washing machines, the pressure after pressurization can reach 500-3000 Bar or even higher. This strong pressure gives the water a tremendous amount of kinetic energy, providing a source of power for the subsequent intense cleaning. Different types of pumps vary in pressure increase performance and application scenarios, and the pressure fluctuations of cylinder pumps are small, suitable for precision cleaning; Some pumps with high flow are more suitable for rinsing large areas.
The transmission of high-pressure water flow
The increased water is delivered through a high pressure hose to a cleaning gun or spray head. These high-pressure pipes have the characteristics of pressure resistance, wear resistance and flexibility, and can adapt to complex operational environments. For example, in some industrial sites, high-pressure pipes may need to be moved between different equipment and pipes, and the flexible nature makes it easy to arrange and adjust. At the same time, the pressure resistance of the high-pressure pipe ensures that no rupture or leakage occurs under ultra high pressure, ensuring the safety of the operator.
The cleaning effect of high-speed water jets
The nozzle further focuses and accelerates the high-pressure water flow to form a high-speed water arrow with a speed of 200-1000 m / s. When high-speed water jets hit the surface of an object, cleaning is achieved through a variety of mechanisms. Impact action means that high-speed water jet has a great momentum, and when it hits the dirt surface, it creates a powerful impact force, strips dirt from the base surface, and can effectively remove dirt, paint, rust, oil and other attachments, especially for loose or medium attachments. Water wedge action means that high-pressure water flow enters the tiny gap between dirt and substrate, forming a water pressure difference, lifting dirt like a "wedge," and peeling it off. It has good penetration and separation effect for cracks, accumulated layers, old dirt, etc. The vacuation effect is that under pressure, tiny bubbles will form in the water flow, and when these bubbles reach the dirt surface and rupture instantly, they release huge energy, destroy the dirt structure, and enhance the cleaning effect on stubborn dirt, microbial membranes, and tightly attached stains.

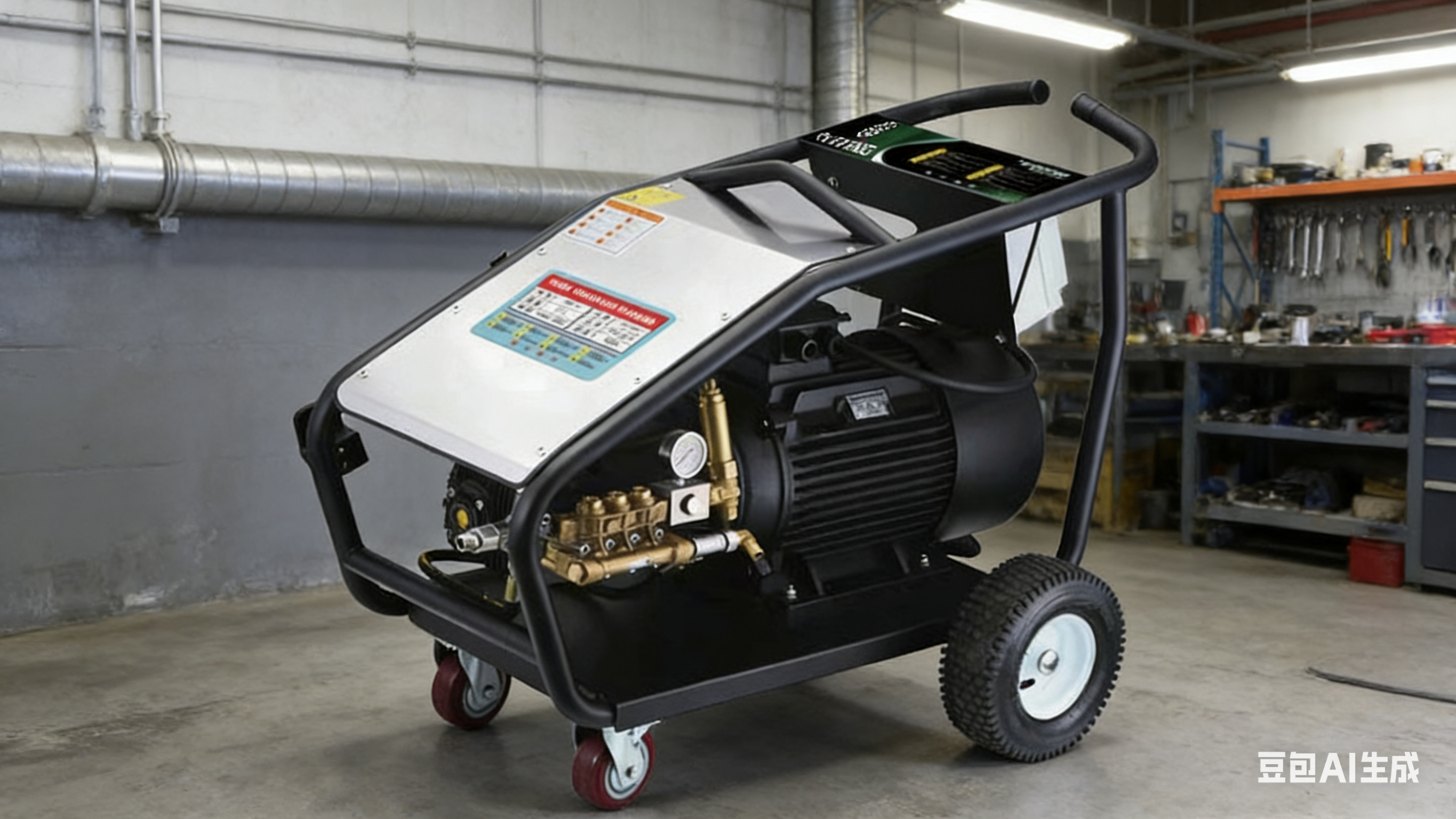

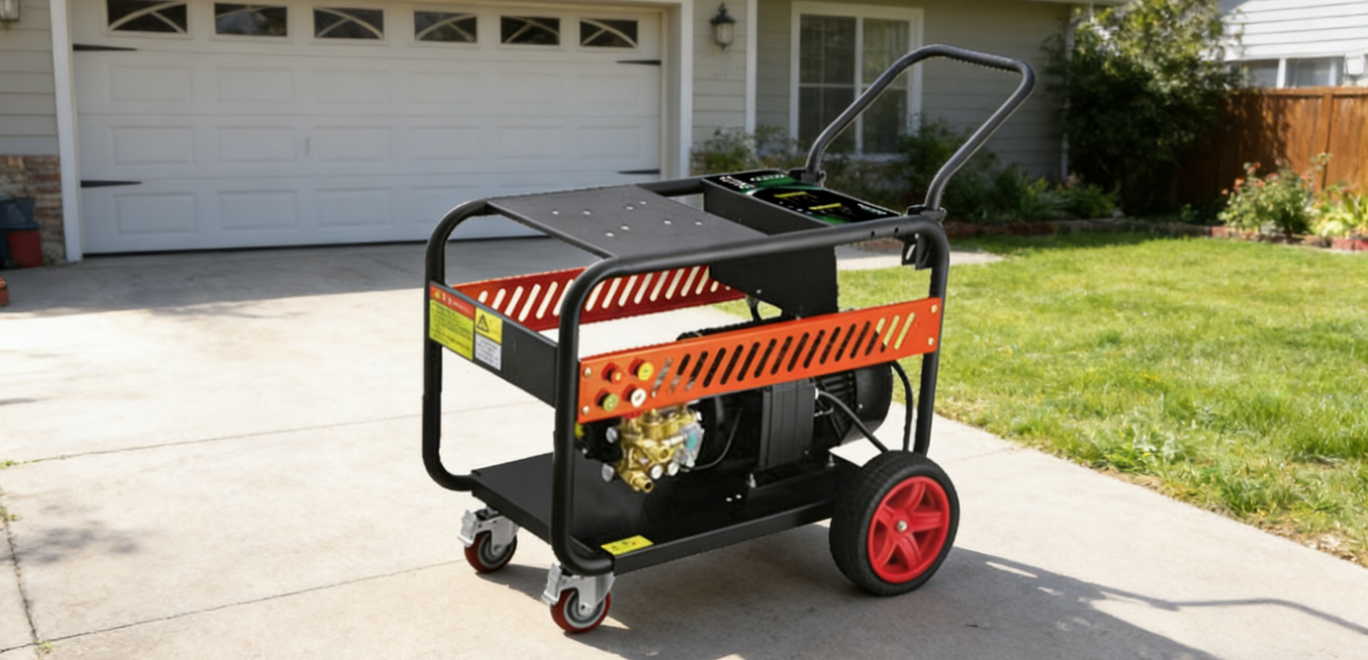

Component parts of an ultra high pressure cleaning machine
Power Source
Power sources are a key part of driving a high-pressure pump, usually in the form of electric motors (AC or DC), gasoline engines or diesel engines. The electric motor has the advantages of stable operation, low noise and non-pollution, and is suitable for indoor or places with high environmental requirements. Gasoline engines and diesel engines have strong power and are not limited by power supply, and are suitable for use in the wild or places without power supply. For example, in the cleaning of industrial equipment in some remote construction sites or in the field, diesel-powered ultra-high pressure cleaning machines play an important role.
High pressure pump
As the core component, the high pressure pump is responsible for pressuring the water to the desired high pressure state. Common types are piston pumps, piston pump, etc. With its low pressure fluctuation, the piston pump performs well in cleaning scenes where precision pressure control is required. The piston pump has an advantage in some cases where the flow requirements are greater. Different types of high pressure pumps vary in material, structure and performance, and users need to choose according to specific cleaning needs.
Water tanks and inlets
A water tank provides a water source for the cleaning machine, and some ultra high-pressure cleaning machines come with a water tank, which is convenient for use without an external water source; Others can connect external water sources, such as taps, to ensure a continuous water supply. The inlet is usually equipped with a filter to further protect the high pressure pump from impurities. For example, in some large industrial cleaning equipment, the water tank has a large capacity to meet long-term continuous cleaning operations.
High pressure hoses
The high pressure hose is an important part of the delivery of high pressure water to the spray gun, and it must have high pressure resistance.Generally, double steel wire braided rubber hose or polyurethane hose, pressure resistance is usually ≥ 30MPa.This hose can not only withstand ultra high pressure water flow, but also has a certain flexibility, which is easy to arrange and operate in different operational environments. At the same time, the quality of the high-pressure hose directly relates to the safety and reliability of the cleaning machine, and if the hose ruptures or leaks, it may cause serious injury to the operator.
Spitfire and nozzle
A spray gun is a component that the operator holds or mounts on the device to control the switching and direction of the water flow. The nozzle is installed at the end of the spray gun. Its type determines the shape of the water flow (e.g. fan, rotation, needle, zero, etc.), pressure, and impact force. Different shapes of nozzles are suitable for different cleaning tasks. For example, fan nozzles can be used for large surface cleaning, and rotating nozzles may be better suited for cleaning inside pipes or narrow spaces. The operator can select the appropriate nozzle for cleaning based on the type of dirt and the object to be cleaned.
Pressure valves and safety devices
The pressure valve is used to regulate and control the working pressure of the system, ensuring that the cleaning machine operates within a safe pressure range. Safety devices such as pressure switch, pressure unload valve, gun trigger safety lock, etc. can protect the safety of equipment and operators in time when abnormal conditions occur. For example, when the pressure exceeds the set value, the pressure switch will automatically disconnect the power supply to prevent damage to the equipment. The pressure relief valve can release part of the pressure when the pressure is too high to ensure the stability of the system.
Optional attachments
In order to enhance the cleaning effect and range of application of the ultra high pressure cleaning machine, some optional accessories can also be equipped. Cleaner canisters / injectors can mix cleaners or chemicals proportionally in high-pressure water to enhance the cleaning effect, especially for oily cleaning scenarios. The rotating head / rod is suitable for cleaning inside pipes, containers or hard-to-reach areas, and can penetrate into small spaces for comprehensive cleaning. The extension rod / floor cleaning accessories are convenient for cleaning large areas such as floors and walls, and improve cleaning efficiency. The filter can further protect the high pressure pump from impurities and extend the service life of the equipment.
Application areas of ultra high pressure cleaning machines
Industrial cleaning
In the industrial field, ultra high pressure cleaning machines have a wide range of applications. It can be used to clean factory equipment such as heat exchangers, reactors, storage tanks, etc. During the long-term operation of these equipment, a large amount of dirt, sediment and impurities will accumulate inside, affecting the performance and service life of the equipment. The ultra high pressure cleaning machine is able to completely remove these dirt and restore the normal operation of the equipment through the powerful impact of the water flow. For example, in the chemical industry, dirt inside the reactor may affect the conduct of chemical reactions, and the use of ultra high pressure cleaning machines can regularly clean the reactor to ensure the smooth progress of production. In addition, the ultra-high pressure cleaning machine can also be used to clean molds, conveyor belts, parts, etc., achieving oil, rust, and paint removal.
Building cleaning
In the construction field, ultra high pressure cleaning machines can be used for exterior wall cleaning, cement floor cleaning, concrete hair painting and other work. Wall cleaning can remove dust, dirt, graffiti, etc. on the outer wall of a building, making the building a new look. Concrete ground cleaning can remove oil, stains and debris on the ground, improving the cleanliness and safety of the ground. Concrete polishing is done to increase the roughness of the surface of the concrete for subsequent construction, such as tiling or painting. Ultra high pressure cleaning machines can also be used to remove old paint layers and graffiti, facilitating the renovation and renovation of buildings.
Vehicle maintenance
Ultra high-pressure cleaning machines also play an important role in vehicle maintenance. It can thoroughly clean the body, chassis, engine compartment and other parts of the car. Body cleaning can remove dust, dirt and oil from the surface of the body, making the appearance of the car brighter; Chassis cleaning can remove dirt, sand and corrosive substances from the chassis to prevent rust and damage to the chassis. Engine compartment cleaning can remove oil and dust from the surface of the engine, improving the cooling performance and working efficiency of the engine. In addition, ultra high-pressure cleaning machines can also be used to clean engineering vehicles, trains, aircraft, ship hulls, etc., to meet the cleaning needs of different types of vehicles.
Municipal Works
In municipal engineering, ultra high pressure cleaning machines can be used to clear down water pipes, clean municipal facilities, and so on. During long-term use of the drain pipe, a large amount of debris and dirt will accumulate, causing the pipe to become blocked. Through the impact of high-pressure water flow, the ultra-high-pressure cleaning machine can wash away debris in the pipe and restore the flow of the pipe. Cleaning municipal facilities such as garbage cans, platforms, sculptures, etc. can keep the urban environment clean and beautiful. Road barriers are also an important application of ultra high pressure cleaning machines, which can remove oil, garbage and snow on the roads, ensuring the safety and smooth passage of the roads.
The advantages and characteristics of ultra high pressure cleaning machines
Efficient cleaning
The ultra-high pressure cleaning machine utilizes the powerful impact force of high-speed water jets, water wedge action and airification effect to quickly and effectively remove various persistent stains. Compared with traditional cleaning methods, it has a higher cleaning efficiency and can greatly shorten the cleaning time. For example, when cleaning large industrial equipment, traditional manual cleaning may take days, while the use of ultra high pressure cleaning machines can be completed in only a few hours, increasing production efficiency.
Environmental protection and energy conservation
The ultra high pressure cleaning machine mainly uses water as a cleaning medium, which does not require the use of a large amount of chemical cleaning agents, reducing the pollution of the environment. At the same time, it can precisely control the flow and pressure of water during the cleaning process, saving water. For example, in some areas where water resources are scarce, the water saving characteristics of ultra high pressure cleaning machines are especially important. In addition, the power sources of ultra high-pressure cleaning machines are constantly improving, and some new electric motors and engines have greater energy efficiency, reducing energy consumption.
